Nordlys
The Nordlys effect
Patients will notice a visible anti aging effect and improvement in overall skin condition.
The science behind Nordlys
IPL
Hair removal
Controlled pulses of light penetrate the epidermis and are absorbed by melanin in the hair contained in the follicle. The resulting thermal effect will destroy the hair follicle preventing future hair production.
During hair growth, the hair goes through 3 stages: Anagen (active), Telogen (resting) & Catagen (falling). In the Anagen stage, the hair is attached to follicle & hence both will be destroyed by the thermal energy of the IPL, the hair in the other stages will fall and grow back as an anagen & because of this multiple sessions is needed for the best results.
IPL
Photo-rejuvenation, pigmented lesions
The treatment works by directing well-controlled pulses of light into the upper skin layer. The light is absorbed by two of the body's own natural chromophores - melanin in the pigmented areas and hemoglobin in the blood.
Both these pigments convert the light energy into heat. This heat is used to destroy the parts of the cells in which the melanin is stored, and to damage the walls of the vessels supplying blood to the areas where vascular damage is seen.
The treatment works by directing well-controlled pulses of light into the upper skin layer. The light is absorbed by two of the body's own natural chromophores - melanin in the pigmented areas and hemoglobin in the blood.
Both these pigments convert the light energy into heat. This heat is used to destroy the parts of the cells in which the melanin is stored, and to damage the walls of the vessels supplying blood to the areas where vascular damage is seen.
Nd:YAG & IPL
Vascular lesions

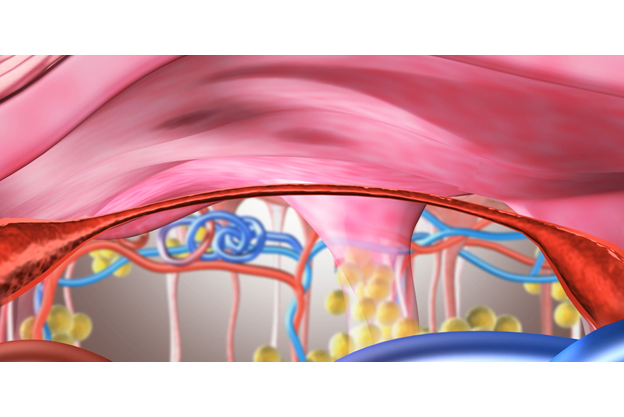

The vessel supplying the lesion with blood is targeted and destroyed. Over time the vascular lesion disappears, restoring the skin’s natural appearance.
For superficial lesions, the Ellipse IPL works by directing well-controlled pulses of light into the upper skin layer. The light is absorbed by hemoglobin in the blood contained in the vessels & The thermal effect destroys the vessels walls. IPL excels in diffused redness & Nd:YAG is specialized in blue veins.
The combination of Ellipse Square Pulse & Dual Filter Technology ensures that the treatment is done without damaging the surrounding tissue.
The vessel supplying the lesion with blood is targeted and destroyed. Over time the vascular lesion disappears, restoring the skin’s natural appearance.
For superficial lesions, the Ellipse IPL works by directing well-controlled pulses of light into the upper skin layer. The light is absorbed by hemoglobin in the blood contained in the vessels & The thermal effect destroys the vessels walls. IPL excels in diffused redness & Nd:YAG is specialized in blue veins.
The combination of Ellipse Square Pulse & Dual Filter Technology ensures that the treatment is done without damaging the surrounding tissue.
Frax 1550 & IPL
Skin resurfacing & Rejuvenation
Frax 1550 non-ablative skin resurfacing uses a laser to improve skin quality by heating the lower layer of skin without injuring the skin surface.
The heat generated by the laser is absorbed by water resulting in collagen shrinkage which stimulates collagen production which causes the skin to tighten and look younger and healthier.
Non-ablative fractional lasers, deliver heat into the skin through thousands of tiny, deep columns known as microthermal zones (MTZ). The fractional treatment allows the skin to heal faster than if the entire area was treated.
Frax 1550 non-ablative skin resurfacing uses a laser to improve skin quality by heating the lower layer of skin without injuring the skin surface.
The heat generated by the laser is absorbed by water resulting in collagen shrinkage which stimulates collagen production which causes the skin to tighten and look younger and healthier.
Non-ablative fractional lasers, deliver heat into the skin through thousands of tiny, deep columns known as microthermal zones (MTZ). The fractional treatment allows the skin to heal faster than if the entire area was treated.
Features and benefits
More in one
Nordlys avails several technologies in one platform, the different technology choices enable treating hair removal, vascular lesions, skin resurfacing & skin rejuvenation.
Pure energy selection

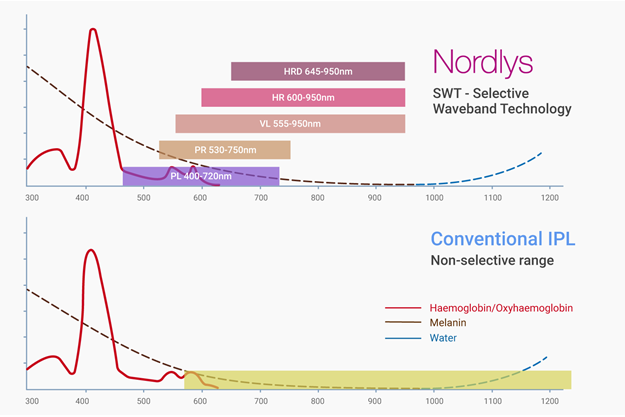

The dual filter enables a precise control of the wavelength band & eliminates harmful wavelengths, this maximizes both safety & efficacy and known as 'Selective waveband technology'.
Effective in smallest targets
Small lesions can be targeted & treated effectively & safely by the Nordlys unique short pulse duration that starts as low as 0.5 ms.
Scalable system
Nordlys can be upgraded by different choices of applicators, this allows starting with any applicator & upgrading with more applicators later according to the demand in your clinic.
Fast hair removal
Nordlys provides a large spot size of 10 mm x 48 mm that allows performing a full back hair removal session in just 10 mins.
Optimized vascular treatments
The sub-millisecond pulse duration allows treating different sizes of vessels effectively, the treatment is easily tolerated by 'Soft Cool technology' air cooling.
Fractional pulse duration control
Nordlys enables controlling both energy & pulse duration independently unlike the other Er:Glass technologies. This allows the user to adjust the parameters to match different patient conditions & tolerances.
Fractional speed sensor
The fractional applicator has a rolling sensor that tracks treatment speed which enables a safe & consistent application, it stops the laser shooting if the hand movement is too slow and sounds an alarm if the hand movement is too fast.
Consistent results
The square pulse technology ensures an equal energy distribution across the treated area. This enables delivering unified results across the skin surface & enhances the safety profile.
Precise & easy to use
Nordlys provides features that empower the user like patient database recording, transparent tips for visibility, remote service assistance by engineers through internet.
Guided & expert parameters
Automatic preset parameters for different skin conditions are available for new users. A memory function allows saving and recalling favourite parameters for expert users.
